Product Description

Spring cone crusher is suitable to crush kinds of ores and rocks with medium hardness and above. It has features of reliable structure,high efficiency,high capacity,low operating cost,easy adjustment ,economical to use and so on. Spring system plays the role of overload protection, which will enable the exotic materials or steel piece to pass through the crushing chamber without any damage to the machine. It adopts grease seal to isolate dust and lubricants, therefore ensure its reliable operation. According to customer demand, respectively, using standard type, medium type and short head type for coarse crushing, medium crushing and fine crushing operation.

Working Principle

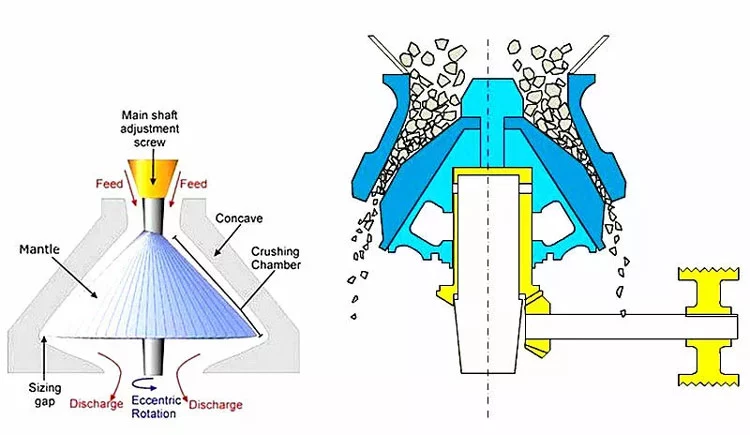

Spring cone crusher working principle :During operation, the motor of goodpy series spring cone crusher price drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed. To ensure the precision of thrust bearing installation in spring cone crusher, installation must be the following steps: first, the installation of the thrust bearing should be same to steps of scratching; jaw plate placed in a case back should be smooth,if case back has the burr and the remaining sand,please clean up.Then pour lubricating oil to just the top of jaw plate. then install the middle circle plate and circle plate. Finally, install the air eccentric shaft, spherical tile racks, and spindle. When installing air eccentric shaft,the big gear weight should be placed in the top of small gear,so that the outer end of bevel gear is alignment. After spherical wham installed, the gap between spherical bearing seat and the main machine is as big as possible.

Spring Cone Crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgies and so on. It has features of reliable structure, high efficiency, high capacity, low operating cost, easy adjustment, economical to use and so on.

The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing. The hot sale models are 600, 900, 1200, 1750, 2200 etc.

Specification

spring cone crusher technology specfications:

Type	Dia. of Cone (mm)	Adjusting Range of Discharge Opening (mm)	Max Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Overall Dimension (mm)
PYB-600	600	12-25	65	15-25	30	5.5	1740×1225×1940
PYD-600		3-13	36	5-23	30	5.5	1740×1225×1940
PYB-900	900	15-50	115	50-90	55	10.18	1990×1640×2380
PYZ-900		5-20	60	20-65	55	10.19	1990×1640×2380
PYD-900		3-13	40	15-50	55	10.27	1990×1640×2380
PYB-1200	1200	20-50	145	110-200	110	24.7	2805×2300×2980
PYZ-1200		8-26	100	50-150	110	25	2805×2300×2980
PYD-1200		3-15	50	18-105	110	25.6	2805×2300×2980
PYB-1750	1750	25-60	215	280-480	155-160	50.6	3610×2950×4185
PYZ-1750		10-30	185	115-320	155-160	51	3610×2950×4185
PYD-1750		5-15	85	75-230	155-160	50.5	3610×2950×4185
PYB-2200	2200	30-60	300	590-1000	260-280	84	4790×3430×5080
PYZ-2200		10-30	235	200-580	260-280	85	4790×3430×5080
PYD-2200		5-16	110	120-370	260-280	85	4790×3430×4852

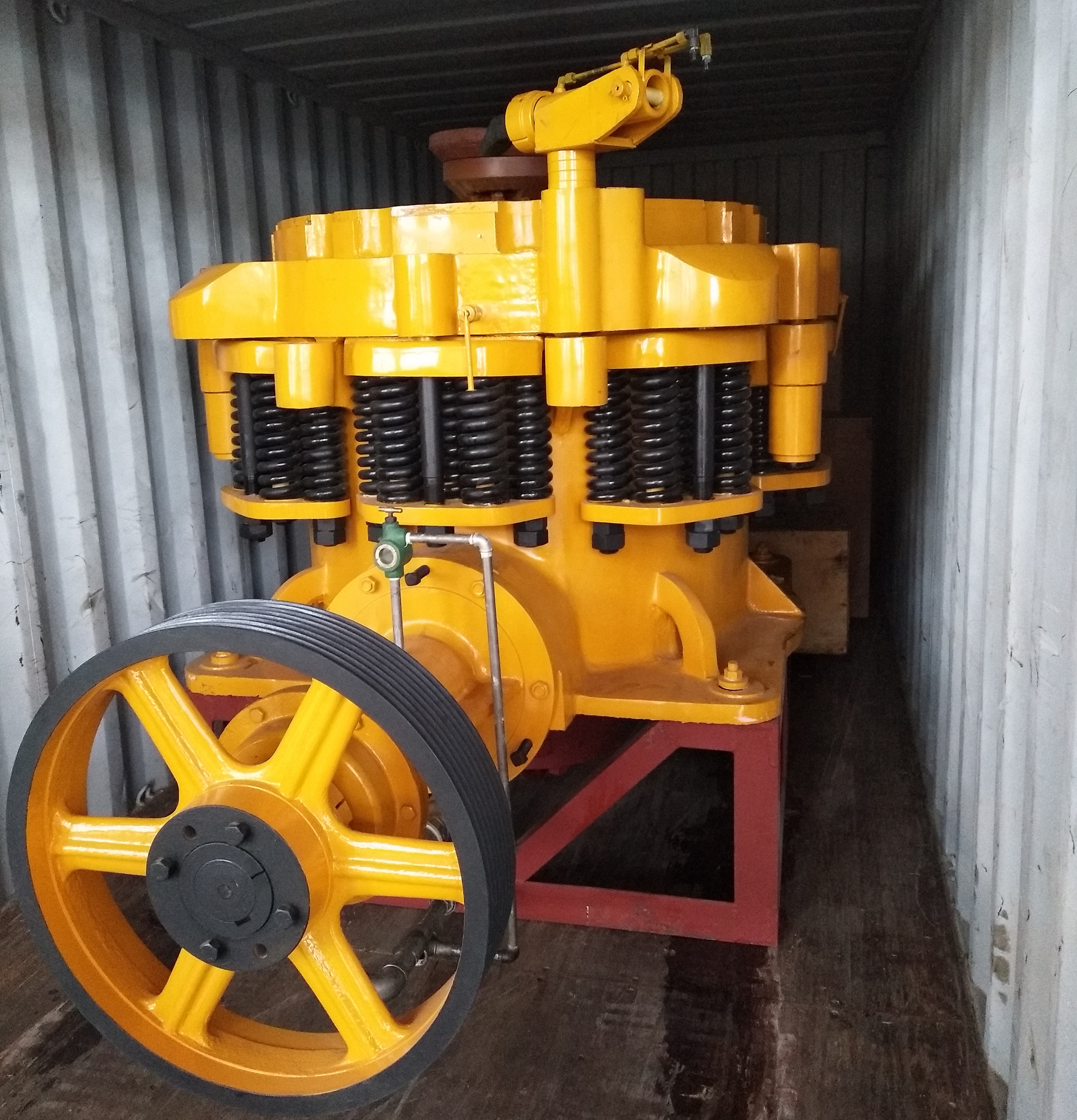

Stable Performance hard stone Spring Cone Crusher manufacturer For Mining and quarry to handle the granite, riverstone Images
